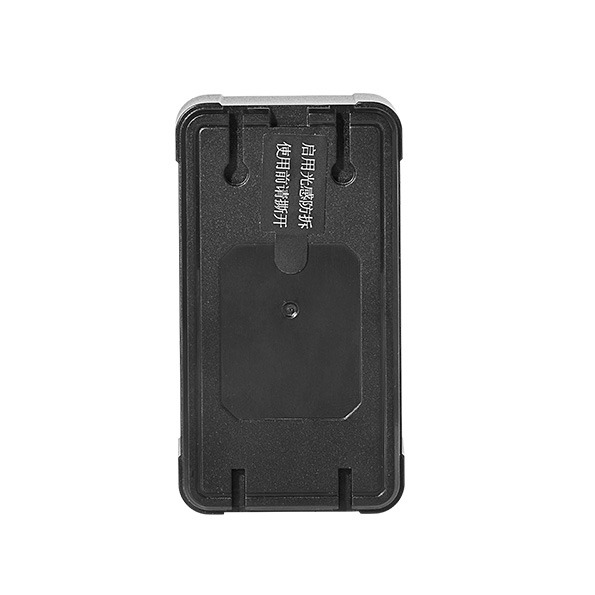

4G ultra long standby wireless terminal
Product model: BSJ-AG01W
Product specifications: 79mm * 44mm * 30mm
Product Overview: AG01W is an ultra long standby positioning terminal that supports 2/4G communication networks. It is designed for industries such as car rental, rental purchasing, car mortgage, cargo tracking, and car loan risk control. It is designed to manage pain points and difficulties such as high industry risks, high labor management costs, and difficult monitoring
Product specifications: 79mm * 44mm * 30mm
Product Overview: AG01W is an ultra long standby positioning terminal that supports 2/4G communication networks. It is designed for industries such as car rental, rental purchasing, car mortgage, cargo tracking, and car loan risk control. It is designed to manage pain points and difficulties such as high industry risks, high labor management costs, and difficult monitoring
Project |
Specification parameters |
working voltage |
DC 3V |
Working current |
90~ 120mA@3V |
Specification and size |
L79mm*W44mm*H30mm |
locate mode |
Beidou/GPS positioning+base station positioning+WiFi positioning |
position error |
GPS positioning error<10m (this data is for reference only, positioning error is related to factors such as terrain and time in the area where the vehicle is located) Base station positioning error depends on the density of base stations in the interval |
Communication network |
Support domestic 2G/4G networks |
Communication method |
UDP |
Working temperature range |
-20℃~+75℃ |
Storage Temperature Range |
-40℃~+85℃ |
Battery capacity |
Using a brand new battery, it can work continuously for 3 years (Panasonic CR123A) |
