Project |
Technical Parameter |
|
Model |

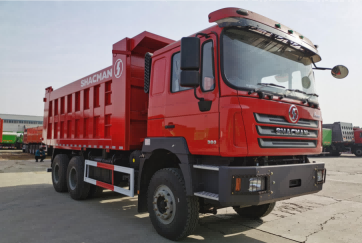

SX3255DR384R |
|
Drive |
6*4 |
|
Wheelbase |
3775+1400mm |
|
Cabin |
F3000 Medium-length flat roof cabin （Add single warning light/high beam） |
|
Engine |
WP10. 340 E22, 340hp |
|
Clutch |
Domestic Clutch |
|
Gear box |
FAST 10JSD180-iron shell-QH50 |
|
Suspension |
Enhanced leaf-spring |
|
Front axle |
MAN technology 9.5 ton front axle |
|
Drive axle |
MAN technology 16ton Double reduction（5.92） |
|
Fuel tank |
400L(Iron) fuel tank with iron lid |
|
Air filter |
Oil-wetted air cleaner |
|
Tire |
12.00R20 11pcs (including one spare tire) |
|
Others configuration |
165Ah maintenance-free battery Manual window rollers Luminaire protection grids Oil sump protection grill Steel plate bumper Electronically controlled automatic climate control Box size: 5600x2300x1500mm Thickness of bottom plate: bottom 10 side 8 Cylinder: Hyva 157 Front Lift Box type：Rectangular Box materia：Q355 Removable through shaft Rear door lug reinforcement Rear door frame with boost plate tail upturn Rear wheel wings lifted with the box Rear bumper round tube structure (adjustable up and down, front and rear) Add two diagonal supports to the bottom of the tank bracket |
