Project |
Technical Parameter |
|

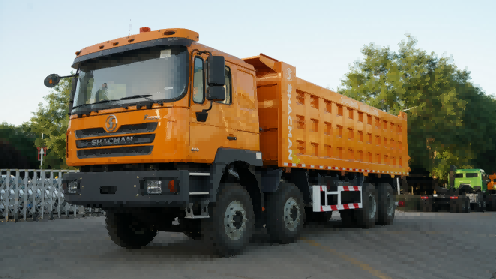

Model |
SX3315DU386R |
|
Drive |
8*4 |
|
Whole mass |
70000KG |
|
Kerb mass |
21000KG |
|
Dimension |
10650×2550×3450 |
|
Wheelbase |
1800+3775+1350 |
|
Cabin |
MAN technology, D’LONG F3000 flat roof cabin with one sleeping bed. Yellow Color, with A/C |
|
Engine |
WEICHAI WP12.400E201 |
|
Clutch |
Ø430 diaphragm clutch |
|
Gear box |
FAST 10JSD180T Fuller technology T |
|
Chassis frame |
Supper enhanced frame 850*320*（8+7+8）mm |
|
Suspension |
Supper enhanced leaf-spring |
|
Front axle |
MAN technology 9.5ton front axle |
|
Drive axle |
MAN technology 16ton Double reduction axle ratio 5.262 |
|
Steering system |
ZF technology right hand driving |
|
Fuel tank |
400L(Iron) fuel tank with protect plate at bottom |
|
Air filter |
Oil-wetted air cleaner |
|
Tyre |
12.00R20 13pcs (including one spare tyre) |
|
Body |
Dimensions：7600×2300×1500mm； HYVA A179 front lifting system bottom:10mm / side:8mm cross section is rectangular side plate is “＃”type the end of cargo box Upturned Material：Q345 |
|
Other |
Back-Up Buzze；Steel plate bumper；Lamps and radiator protected grille；casting towing hook； |
