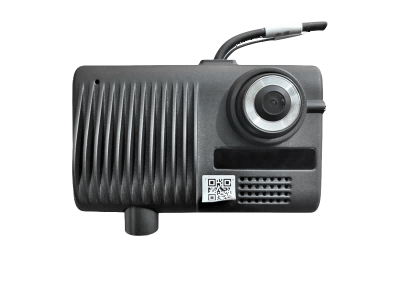

W9F Intelligent Car Terminal

Product model: W9F
Product Overview: The W9F intelligent vehicle terminal adopts professional high-performance image processing chips and LINUX operating system, with intelligent operation and maintenance functions such as real-time fault tracking and remote parameter query settings. It is a high-value intelligent vehicle terminal that integrates satellite positioning, video surveillance, and AI intelligent algorithms.





>>>>

Product Characteristics









>>>>

Product Parameters





Category

Project

Parameter

System

operating system

Linux









Audio and Video













video format

PAL

compression standard

H.264/H.265

Resolution

1080P/720P/D1/HD1/CIF

Video quality

Available in levels 1 to 8, with level 1 having the highest image quality and level 8 having the lowest

Audio quality

G711AG726-32KG726-40K

Recording method

Synchronized recording of sound and video





Picture recording

VIDEO BITRATE

Full frame speed of 4Mbps, optional 8-level picture quality

Audio bit rate

8KB/s

storage medium

TF card

Video inquiry

Can be searched by channel and recording type

Local playback

Replay by file











Interface

Audio and video input

1080P * 1/25 frames+720P * 2/25 frames

Video output

not have

Alarm In

not have

communication interface

1 Type-C interface



antenna interface



1 built-in 4G full network communication antenna

1 built-in 4G full network communication antenna

Intercom interface

1 built-in speaker, 1 MIC

pilot lamp

1 piece

alarm button

1 piece

TF card

1, single card supports a maximum of 512GB

SIM card

1, Medium sized card (Micro)





Other

operation temperature

-20~70

power input

DC:9~36V

power consumption

Voltage 12/1A, voltage 24V/0.5A

sensor

High performance six axis IMU sensor

WI-FI

support

storage capacity

D1 is about 500M/hour/channel, 720P is about 1G/hour/channel, 1080P is about 2G/hour/channel

software upgrading

Upgrade Mode

Manual upgrade, automatic upgrade, remote upgrade

Upgrade method

Type-C interface, TF card, wireless network
